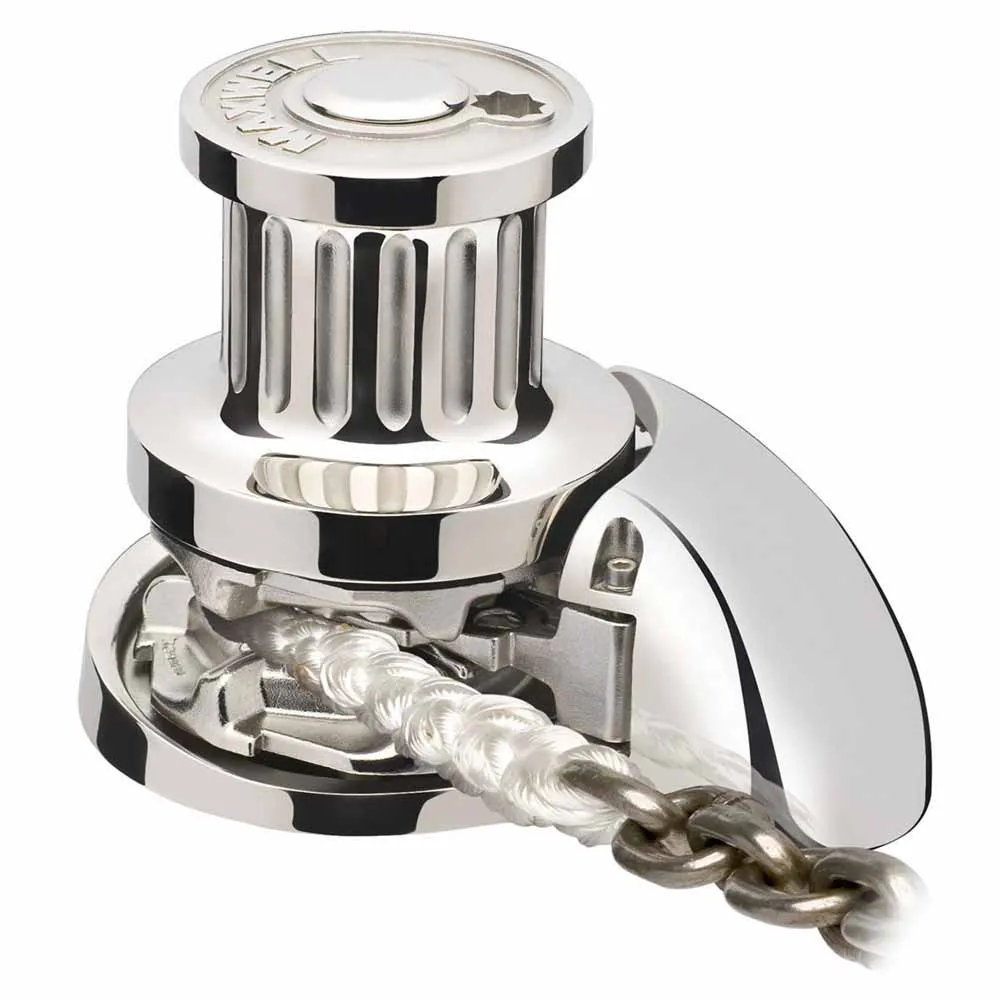

RC12-HD 24 V 2000 100TDC CW Gypsy+Drum Windlass

This design is particulary well suited to vessels requiring high service speeds such as patrol vessels as the reduced weight of rope/chain combination rodes removes weight from the front of the vessel. The RC12HD is fitted with a heavy duty fan cooled DC motor and fin cooled gearbox allowing running for extended periods. The RC12HD is available with either a 24VDC or Hydraulic motor. Run time on the DC version varies with load from continuous operation at loads up to 300kgf to a 5 minute run time at loads of 700kgf. The RC12HD features Maxwell´s revolutionary and patented Wave Design ™ chainwheel.

Specifications:

– Rope/chain: Robe/chain
– Drum: Yes
– Motor (W): 2000
– Maximum pull/lift (kg): 1820
– Chain (mm): 12
– Vertical/Horizontal: Vertical
