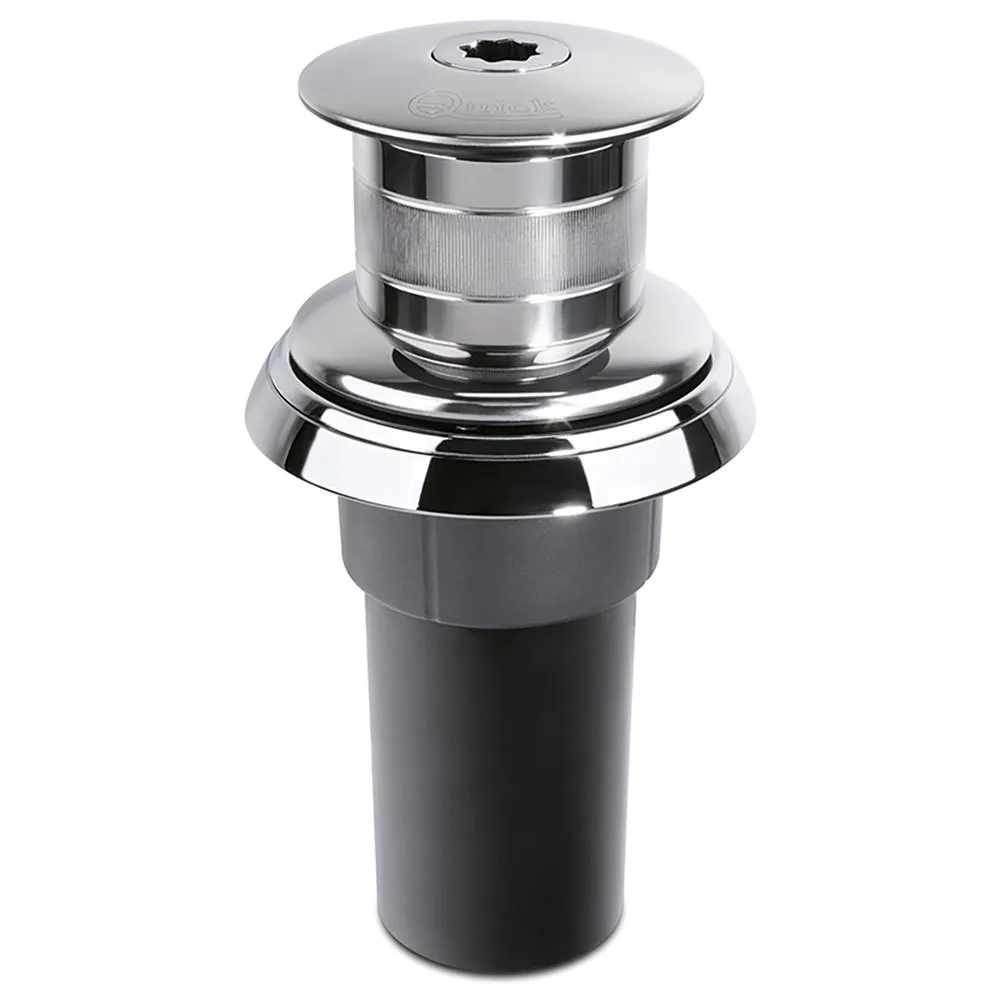

Pinwheel Totem 800W 12V

The TM3 warping winches is equipped with an epicyclical gearbox, that provides much higher efficiency 40% compared to equivalent traditional gearboxes).

Features:

– Warping Winches
– AISI Stainless steel 316 base
– Vertical watertight motor for easy and fast drop-in installation
– Anodized aluminium gearbox

Specifications:

– TM3: 800 W 12V 11 – 14 m
– Motor power: 800 W
– Motor supply voltage: 12 V
– Maximum pull: 820 Kg 1808 lb
– Maximum working load: 290 Kg 639 lb
– Working load: 95 Kg 209 lb
– Current absorbtion @ working load (1): 80 A
– Maximum chain speed (2): 25,8 m/min 84.6 ft/min
– Maximum chain speed @ working load (2): 16,8 m/min 55.1 ft/min
– Drum Ø: 130 mm 5” 1/8
– Weight: 8,1 Kg 17.8 lb
