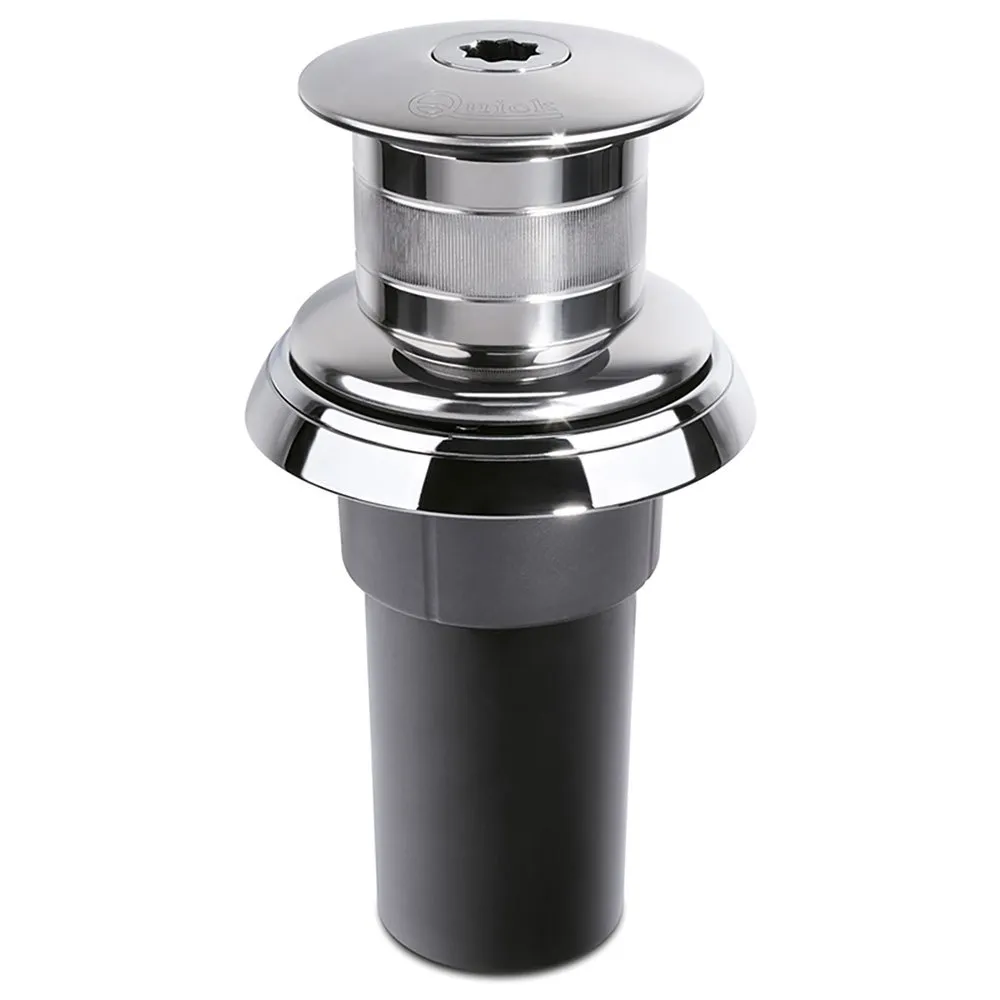

Pinwheel Totem 500W 12V

The TM3 warping winches is equipped with an epicyclical gearbox, that provides much higher efficiency 40% compared to equivalent traditional gearboxes).

Features:

– Warping Winches
– AISI Stainless steel 316 base
– Vertical watertight motor for easy and fast drop-in installation
– Anodized aluminium gearbox

Specifications:

– Motor power: 500 W
– Motor supply voltage: 12 V
– Maximum pull: 620 Kg 1367 lb
– Maximum working load: 200 Kg 441 lb
– Working load: 65 Kg 143 lb
– Current absorbtion @ working load (1): 40 A
– Maximum chain speed (2): 15,4 m/min 50.5 ft/min
– Maximum chain speed @ working load (2): 11,9 m/min 39 ft/min
– Drum Ø: 130 mm 5” 1/8
– Weight: 8,1 Kg 17.8 lb
