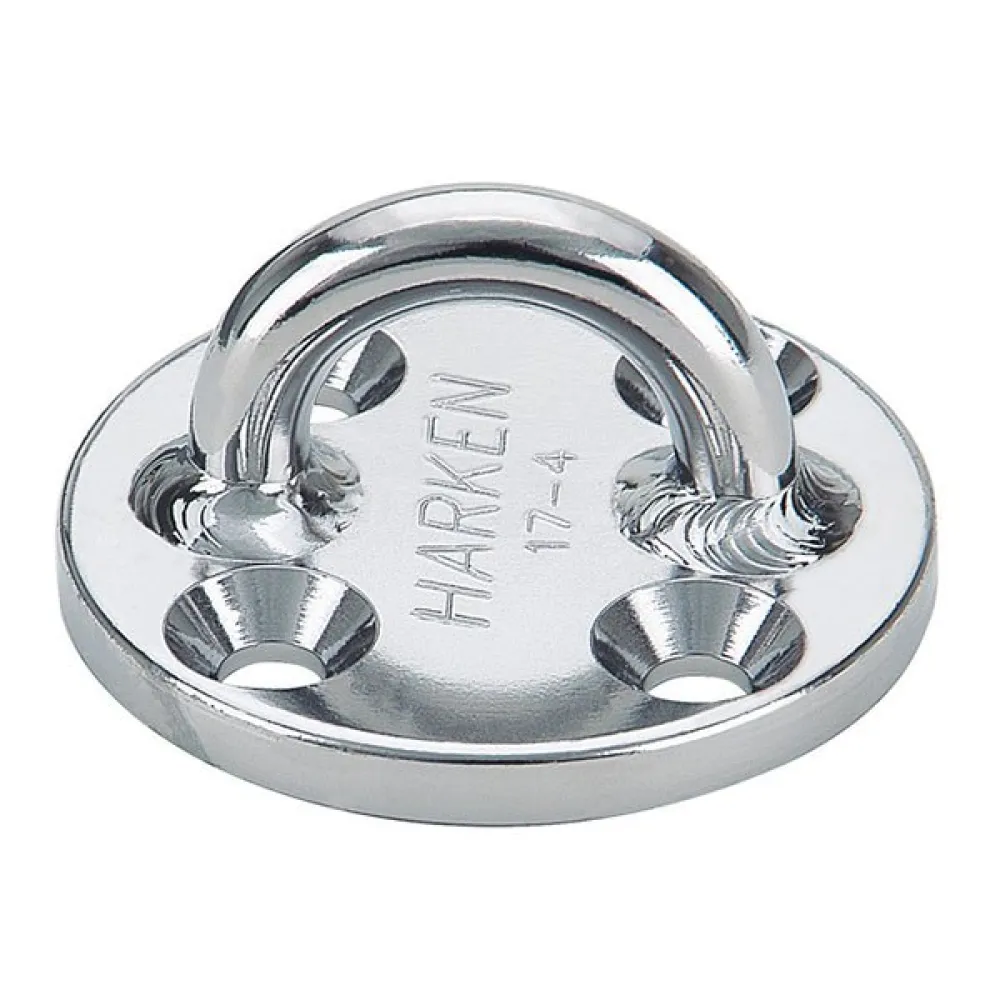

95 Mm Stainless Steel Large Round Handle

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.

Specifications:

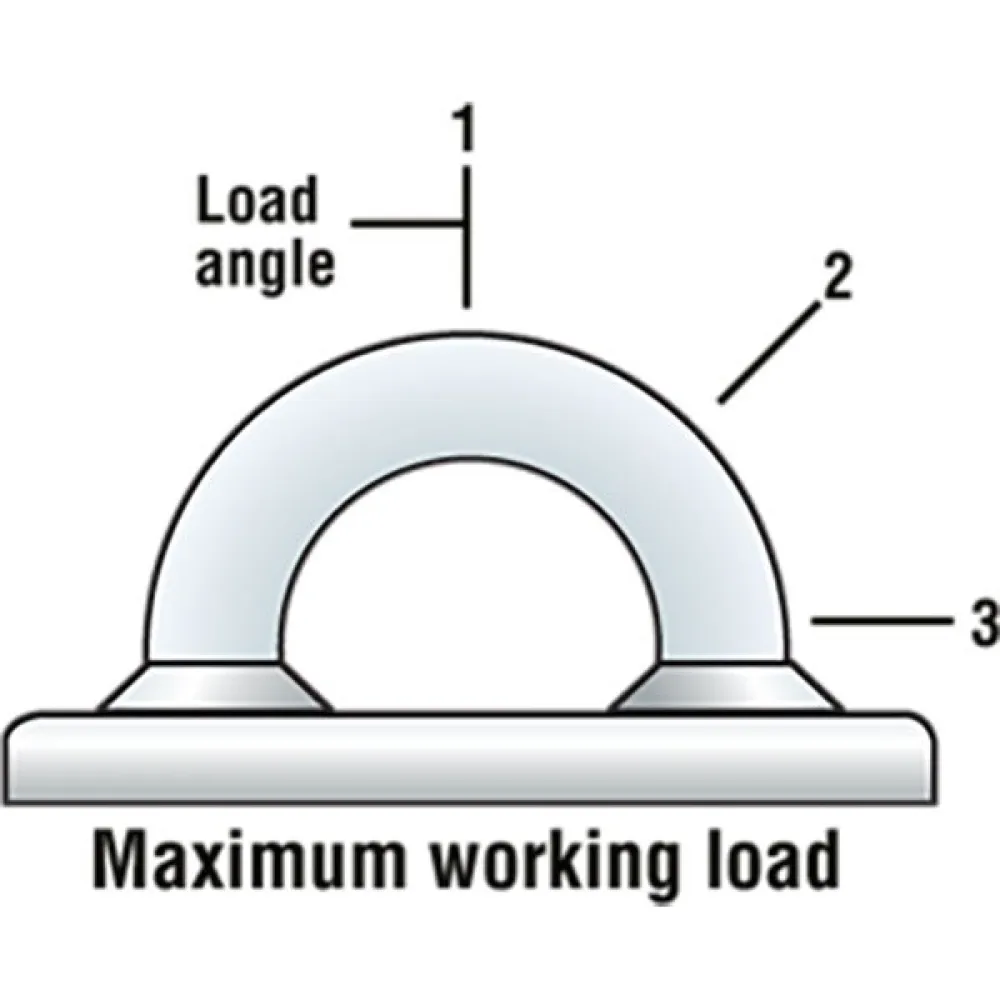

– Maximum Working Load – angle 3 (kg): 6350 kg
– Breaking load – angle 1 (kg): 18140 kg
– Breaking load – angle 2 (kg): 10890 kg
– Breaking load – angle 3 (kg): 12700 kg
– Fasteners (mm): 12 FH mm

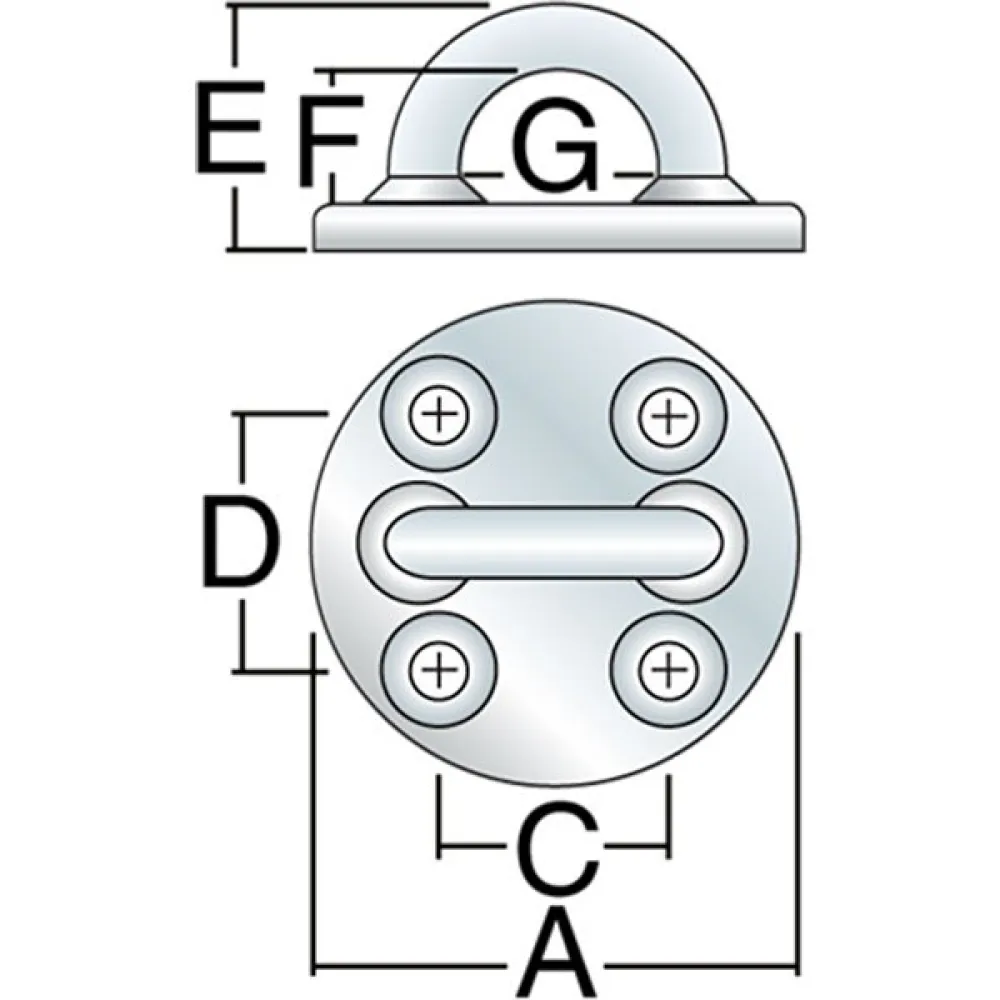

– A (mm): 95 mm
– C (mm): 44 mm
– D (mm): 48 mm
– E (mm): 51 mm
– F (mm): 27 mm
– G (mm): 44 mm
– Weight (g): 652 g
– Maximum Working Load – angle 1 (kg): 9070 kg
– Maximum Working Load – angle 2 (kg): 5440 kg
